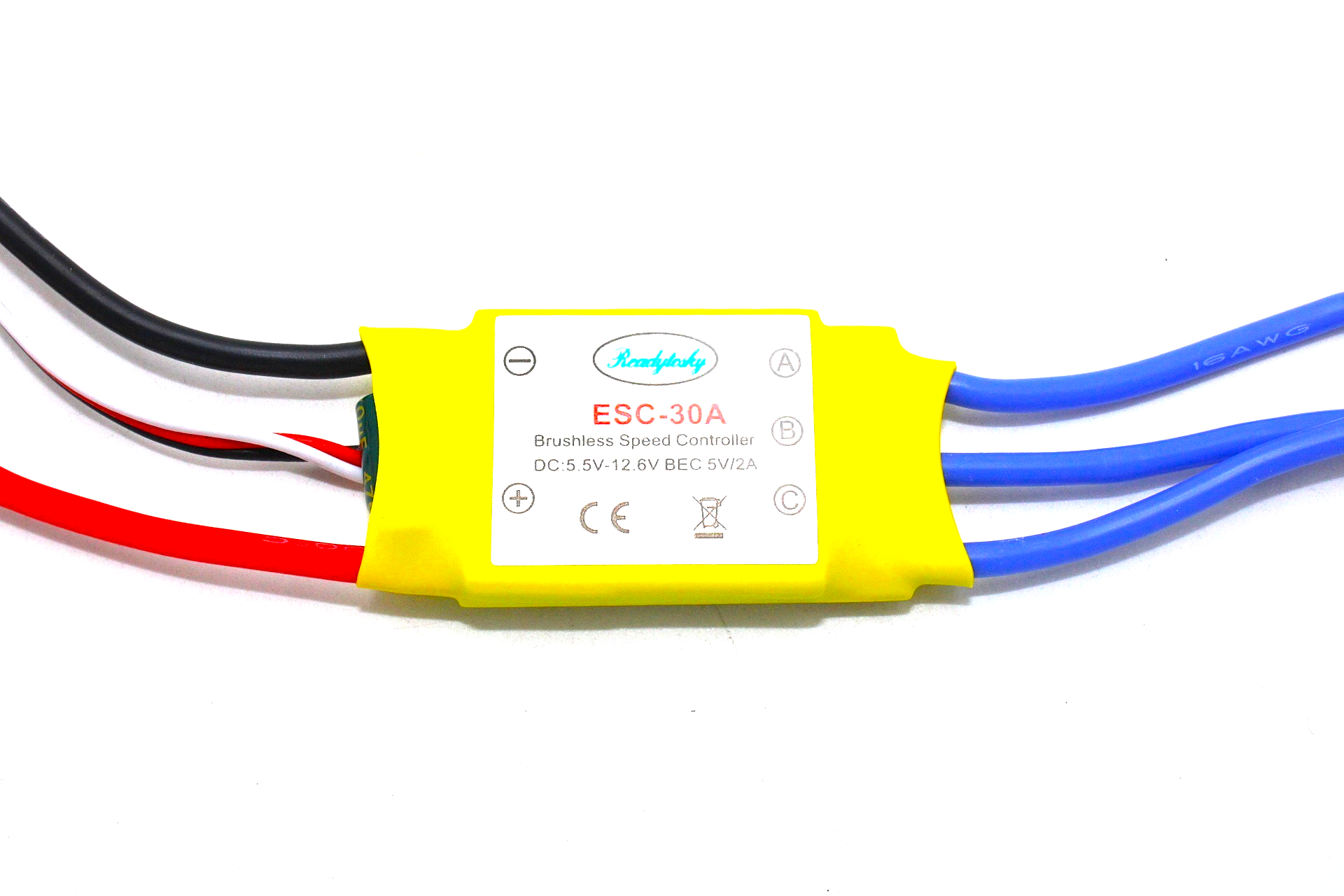

30A BLDC ESC- Brushless Electronic Speed Controller

The 30A BLDC ESC Electronic Speed Controller is designed specifically for quadcopters and multi-rotors, offering enhanced motor speed control for improved flight performance compared to other ESCs on the market.

This controller can drive motors that draw up to 30A and operates on 2S-3S LiPo batteries. It features an onboard BEC that provides a regulated 5V output (up to 2A max) to power the flight controller and other onboard components. It’s suitable for controlling our brushless motors with a 2S-3S LiPo, as long as the motor’s current draw does not exceed 30A.

This ESC is recommended for use with A2212 brushless motors (1000kv, 1400kv, 2200kv).

Features

• MODEL: STANDARD 30A BLDC ESC ELECTRONIC SPEED CONTROLLER
• WEIGHT: 23g
• DIMENSIONS: 45 x 24 x 9 mm(LxWxH)
• Color: Yellow/Red(Depends on Availability)
• CURRENT (A): 30A
• BEC: 3A
• Li-Poly: 2-3
• Ni-Mh/Ni-CD: 4-10 Ni-Mh
• CONSTANT CURRENT: 30A Max 40A<10s
• Li-Poly 2-3 CELLS; Ni-MH 4-10 CELLS Auto Detect
• Break On/Off
• Auto Low BATTERY Slow down at 3.0V/cell Lipo, cut-off at 2.9V/cell lipo
• APPLICATION: Multirotors, Rc Airplanes, etc.
